Top seller Lumini Grow System full spectrum COB 120w led panel led grow light

FOB Reference Price:Get Latest Price
US $1-699 / Pieces | 1 Piece/Pieces led panel led grow light (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Grow Lights
LED Light Source:
3w
Input Voltage(V):
110-220V
Lamp Power(W):
120
Lamp Luminous Flux(lm):
3500-4600
Lamp Luminous Efficiency(lm/w):
38
CRI (Ra>):
76
Working Temperature(℃):
-35 - 55
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CCC, CE, RoHS
Emitting Color:
RGB
Place of Origin:
China (Mainland)
Brand Name:
Lumini
Model Number:
Asta 120R1
Dimmable:
yes
Voltage:
110-220V
Keyword:
120w led panel led grow light
Warranty:
1year
Programmable:
yes
Color:
red
UV:
420
Blue:
465
Red:
630
Lifespan:
50000h
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week cob led grow light
Packaging & Delivery
Packaging Details
Foam+Cartoon+Wooden box
Port
Shenzhen
Lead Time :
15days

Top seller Lumini Grow System full spectrum COB 120w led panel led grow light

Asta 120R1 Plant Grow System

Asta 120R1 is built with 90w COB integrated chips and 10pcs 3w LEDs, providing high PAR performance, We use

the newest DMX control technology, Apple and Android App control is available. 4 separate channels, each channel

has dimmer and timer. Veg/Flower/UVB/full spectrum working mode, daisy chain system.



Asta 120R1.jpg





Growth



Asta 120R1 light is the most

cost effective way for growers to

boost healthy crop yields. Supplying

the compatible light spectrum

which is absorbed by the plant.

This cuts down the plant growth period.

The Asta 120R1 is programmed

for the spectrum sprouts and flowers,

providing an automatic period.

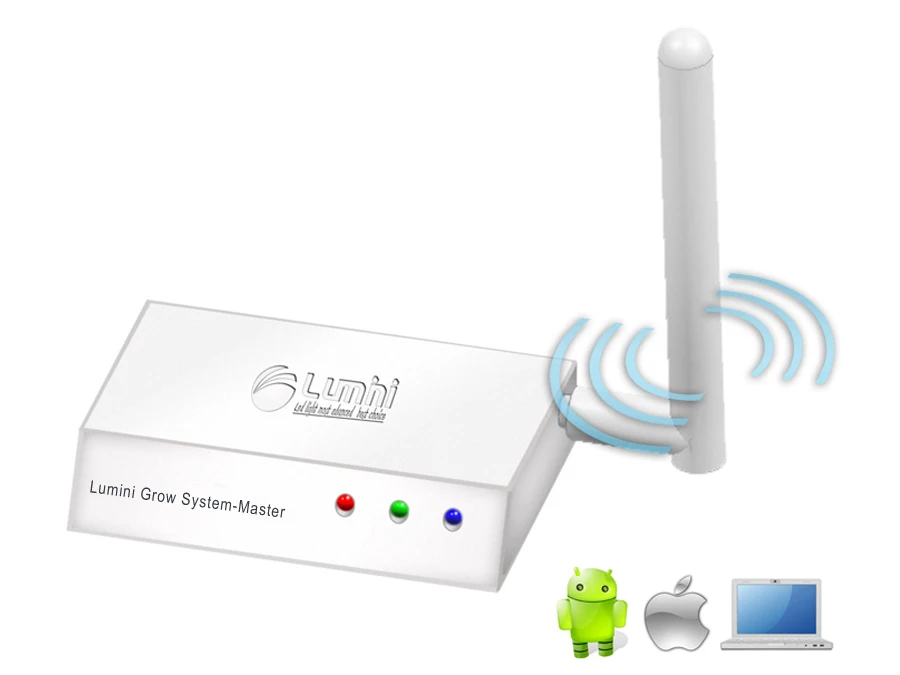

LuminiGrow wifi control.jpg

Control

We use the newest DMX control technology,

enabling wifi control on iPhone. 4 separate

channels, each channel has dimmer and

timer. Veg/Flower/UVB/full spectrum working

mode, daisy chain system. Constant voltage

and constant current power supply to protect

leds.



See more detail, go to www.luminigrow.com



Spectrum



Asta 120R1 supplies the 4 channels with

100% usable spectrum for your plants. with 100%

usable spectrum for your plants. Each channel has

separate dimming and timing. The supplied Veg/

Flower effect is great for plant growing. There is

100% usable light spectrum for plants. HID and

HPS produce excess heat that creates evaporation

and burns plants.

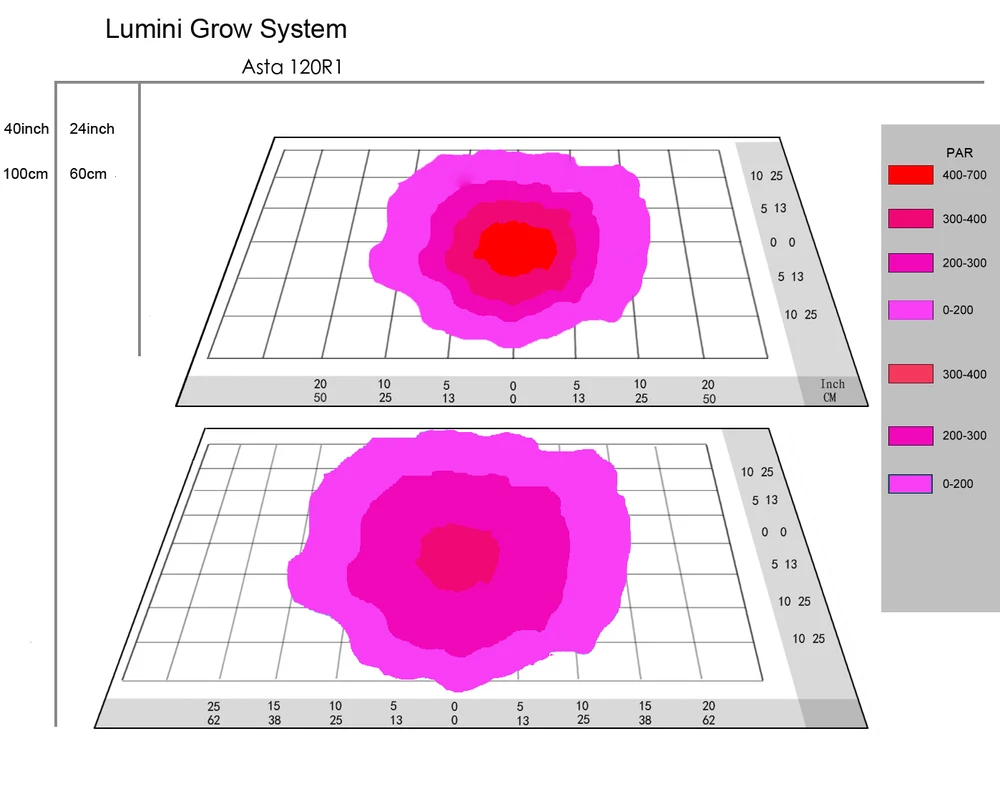

 LuminiGrow Asta 120R1 Par Value.jpg









Intensity

 Asta 120R1 is built with 90w COB integrated

 chips and 10pcs 3w LEDs, each LED input

 current is standard 700mA, high intensity

 LEDs are combined with 90 and 120 degree

 high light transmitting lens. Providing high PAR

 performacnce.






Features

 1.100% Modular design, low cost maintenance

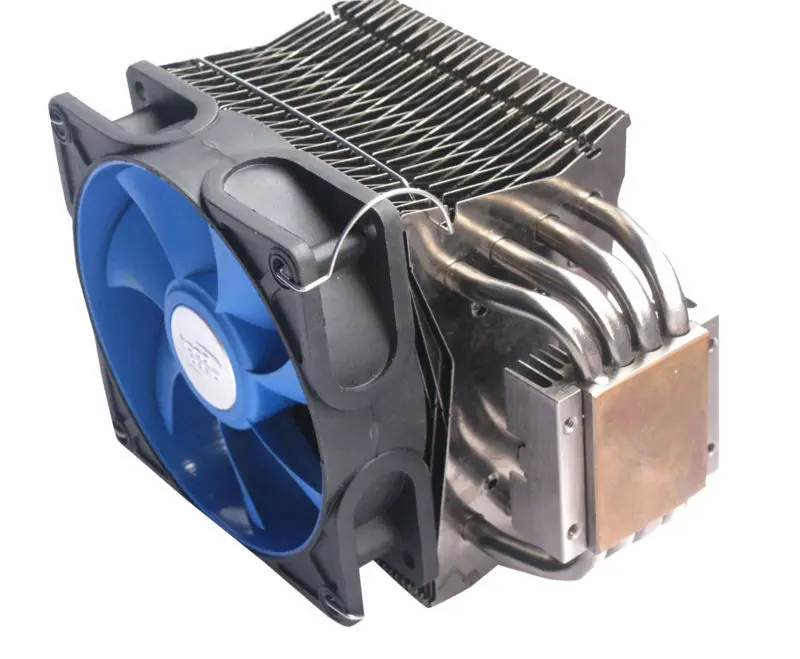

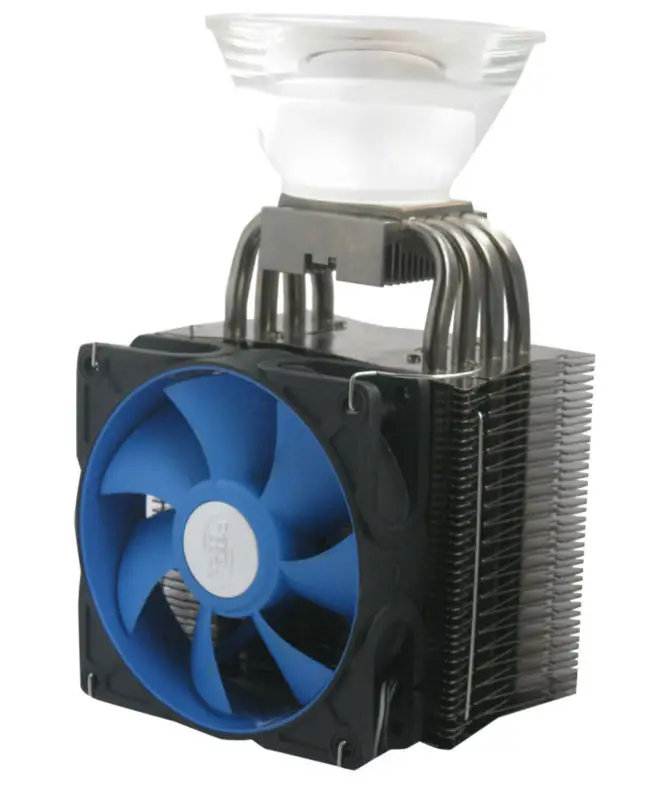

 2.Heat tube cooling, highly efficient and energy          saving control, extends the LED life


 3.Easy to use, simple installation, suitable for deep or shallow water cylinders.


 4. 4 channels separately Control, 8 channels of independent timing and dimming.


 5.Light weight and small size makes for easy shipping and installation





Asta SpareParts 2





Main specification



 Actual power draw 110watts
 0.6 amps @ 220V;1.2 amps@110V
 Power Factor(PF): > 0.96

 Frequency:50/60Hz

 Ac Cable Lenght:4ft

 Dc Cable Lenght:4ft

 AC Connector: IEC 320 Inlet

 Universal Input Range:100 to 240V
 Light Body & Lampshape:
 Aluminum Alloy and PMMA
 Working Humidity: 0 to 60%
 Working Temp.: -35ºC to +55ºC

 CE & ROHS

 Computer power supply











Dimensions



Length:8 inches/22mm


Diameter: 6.2 inches/176mm


Weight: 8.8 pounds/4kg



 Asta 120R1 dimension

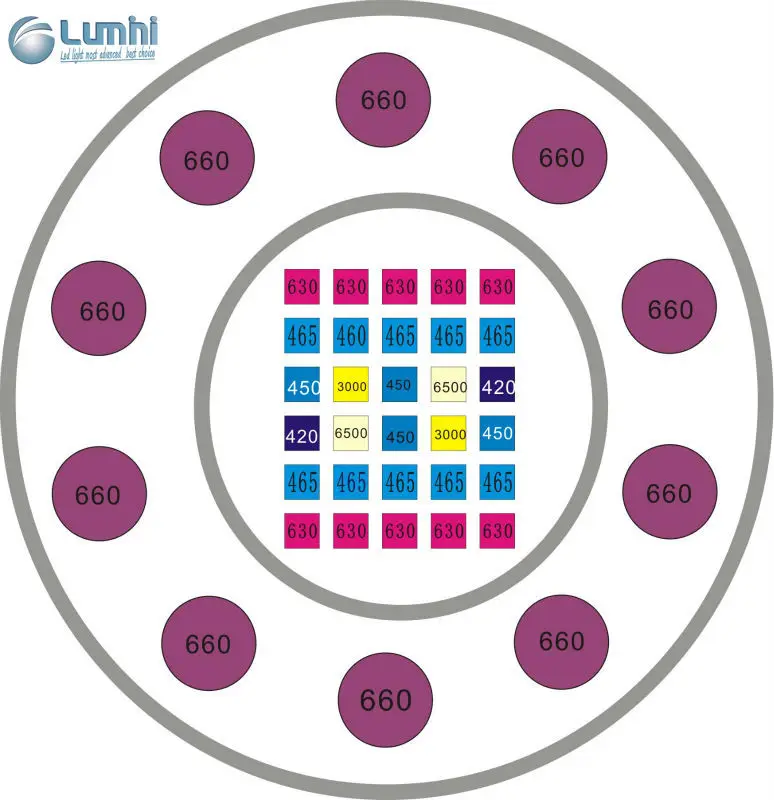

Asta 120R1 Grow led ratio




LEDs

10 x Deep Red LEDs run at 3W Epistar

10 x Red White LEDs run at 3W Epistar

10x Blue LEDs run at 3W SemiLED

2 x UV LEDs run at 3W Edison

2 X 6500K LEDs run at 3W bridglux

2 x 3000K LEDs run at 3W Bridglux

4 x Royal blue LEDs run at 3w SemiLEDS

Lifespan: 50000Hrs

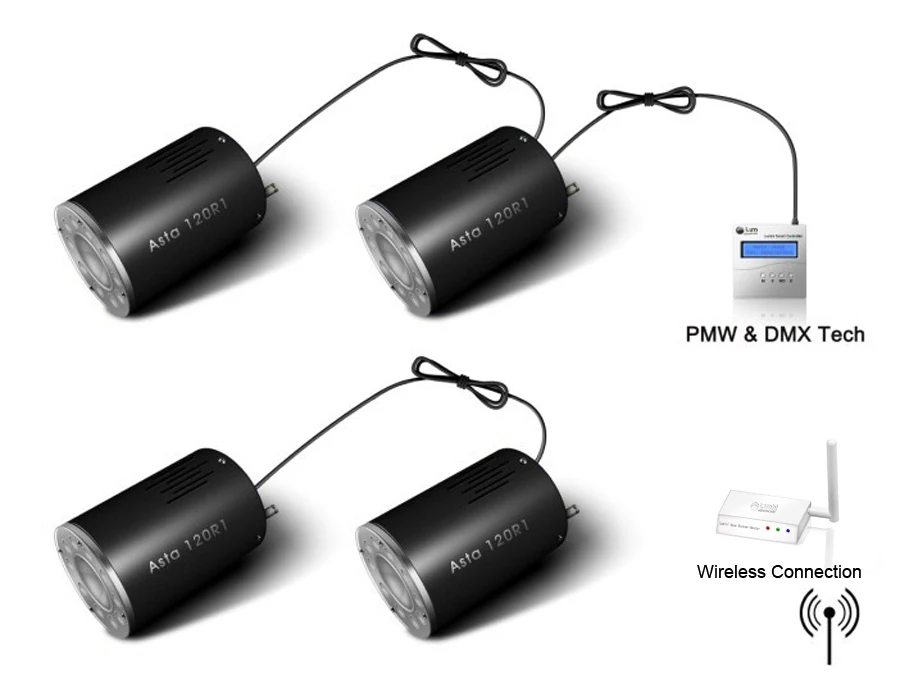

 Asta 120R1 chain-join.jpg

 Asta SpareParts 1
